Design Development – Valves – Pumps – Castings(Vane)

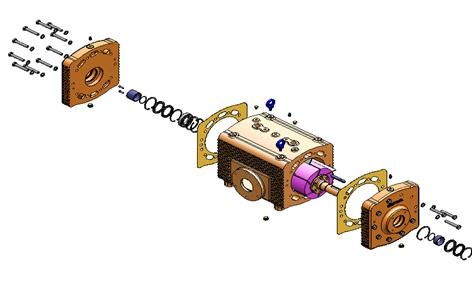

Reverse engineering of existing Vane pumps for bench marking of existing pump. Customer didn’t have any CAD data for this pump
The Rotary vane vacuum pump is used to create a medium level of vacuum in mobile tankers
Project also involved modifying the outer look of the pump & improving its flow capacity
