BIW Closures Strength Evaluation

BIW Closures Strength Evaluation

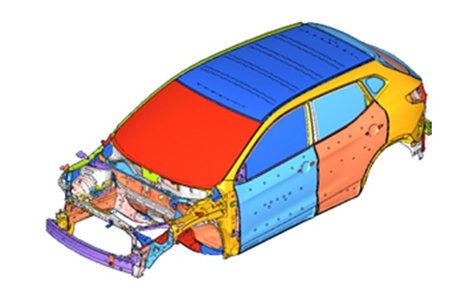

  • Developed Finite Element From CAD Data, Trim, Refined Local Areas And Performed Analysis Setup To Meet The BIW/Door Strength Requirement For Each Of The Load-Cases Using HYPERMESH
  • Modelled Windshield With 3 Layer Glass (Shell / Solid / Material Model) And Adhesive Modelling (Solid)
  • Undertook Analysis Using PAMCRASH
